Closed V Pattern Range :
The low chevron profile are designed to carry loose or bagged material at angles upto 18 – 25 deg.
1,Type V3
Belt Width (MM)
|
Cleat Width
|
Cleat Pitch (MM)
|
Plain Area (MM)
|
Cleat Height (MM)
|
400-1000
|
full width or appointed width
|
100
|
0~250
|
3
|

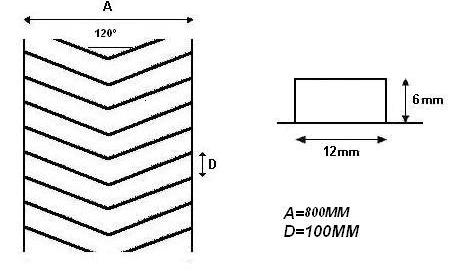

2,Type V6
Belt Width (MM)
|
Cleat Width
|
Cleat Pitch (MM)
|
Plain Area (MM)
|
Cleat Height (MM)
|
400~1200
|
full width or appointed width
|
100
|
0~200
|
6
|
