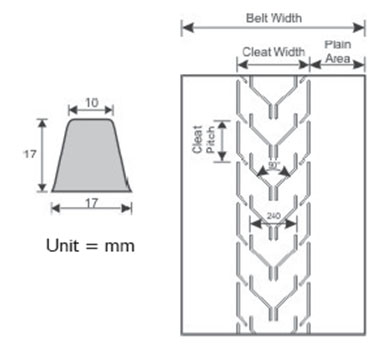

Deep Y Pattern Range:
1, Type H17C440
Belt Width (MM)
|
Cleat Width (MM)
|
Cleat Pitch (MM)
|
Plain Area (MM)
|
Cleat Height (MM)
|
500
|
440
|
330
|
30
|
17
|
600
|
440
|
330
|
80
|
17
|
650
|
440
|
330
|
105
|
17
|
2, Type H17C630
Belt Width (MM)
|
Cleat Width (MM)
|
Cleat Pitch (MM)
|
Plain Area (MM)
|
Cleat Height (MM)
|
750
|
630
|
330
|
60
|
17
|
800
|
630
|
330
|
85
|
17
|
1000
|
630
|
330
|
185
|
17
|
